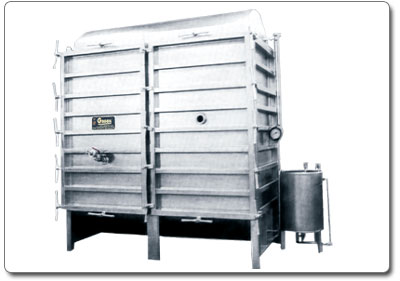

Hank Dyeing dyeing machines, Hank Dyeing dyeing machinery, Hank Dyeing dyeing machine

Technical Specifications:

Capacity	HP
05 Kgs	1.5
10 Kgs	2.0
25 Kgs	2.0
50 Kgs	3.0
100 Kgs	5.0
200 Kgs	7.5
300 Kgs	10.0
400 Kgs	12.5
500 Kgs	15.0
600 Kgs	20.0

Construction:

Construction in Stainless Steel by arc welding process rectangular box with roof with central partion wall, tapered bottom fitted on channel frame with adequate stiffners, direct & indirect steam heating coils fitted at the bottom, perforated cover fitted on top of indirect steam coils with quick drain value,1 No.Sight Glasses to observe the shade of the hank while dyeing process in on with overflow pipe. Turbo Propeller fitted below the central ventricle partion assures symmetrical liquor flow in either direction,driven by central shaft, through 3 grooved pulley for 3 predetermined speeds by an endless vee belt & 1440 R.P.M,415 Volts Motor.

Instrumentaion Comprising:

Dial Thermometer (Temperature Indicator) fitted on main Vat.

Side Water Level

Options:

Auto-Reset Timers for automatic flow reversal

Auto-Reset Timer for total cycle period

Delay timer to provide idle time between reversal of turbo propeller

Auto Manual arrangement to operate the machine manually in the event of failure of any timer

Color Feeding Pump
